CNC Math (Cont.)

Here is the math for using pulleys on a vertical plane. Using the formula Force = mass * gravity and Work = Force * distance. I substituted Force into the work equation. Input the knowns, distance = 1.2 m, max work capable per the specs of the motor = 4.6 Nm, and gravity = 9.8 m/s^2. Re-wrote the equation to solve for mass (kg).

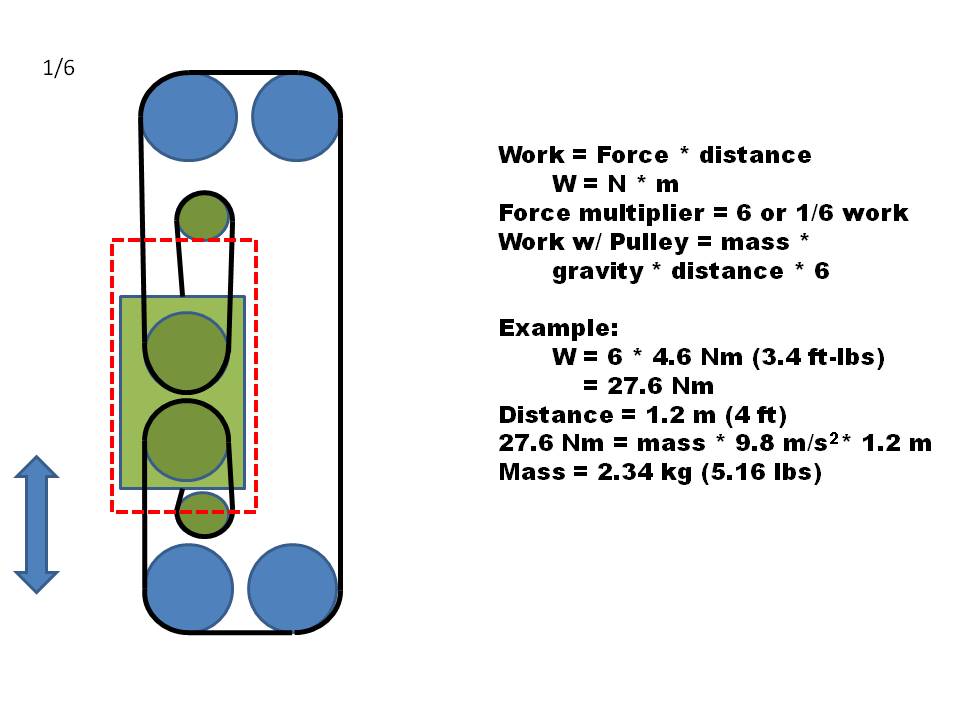

I then calculated for adding additional wheels to multiple the force of the motor.  Each multiplier equals each line connected to the mass which in the illustration has 6 total top and bottom.
That still was not enough force multiplier.  I then calculated gearing and settled on 1:3 which means that for each rotation of the motor, the mass will move a little over 5/16 of an inch.
